Capabilities

Jet Machine serves short-run / low-volume customers as well as industries that require extremely tight-tolerance parts at high production volumes. Utilizing top-of-the-line CNC machining equipment, we have 24-hour production shifts to meet your demands.

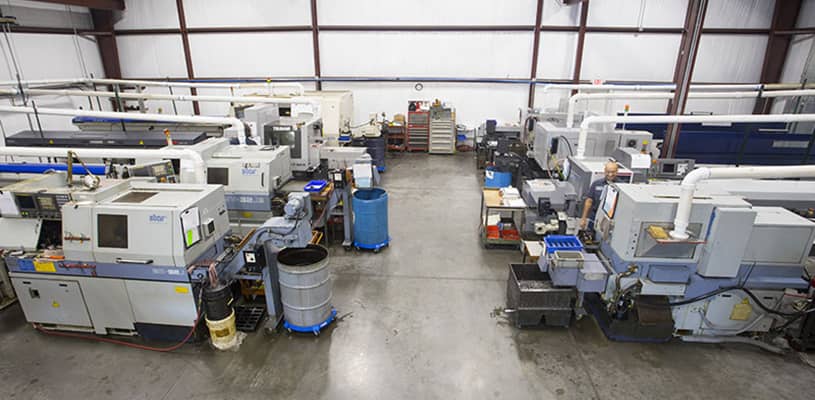

Swiss CNC Turning Capabilities

Jet Machine has eight (8) Swiss turning lathes.

  • 3 – Tsugami lathes
  • 5 – Star lathes

All Swiss turning lathes have the following attributes:

  • Part Diameter: 0.0625-1.25 inches
  • Part Length: approximately 10 feet

Standard CNC Turning Capabilities

Jet Machine uses the Miyano Twin Spindle Twin Turret Y-Axis CNC lathe for standard CNC turning capabilities with the following attributes:

  • Part Diameter: up to 3 inches
  • Part Length: approximately 12 inches

CNC Milling Capabilities

Jet Machine has two (2) horizontal and three (3) vertical milling centers.

TYPE

MODEL

X-AXIS

Y-AXIS

Z-AXIS

Horizontal

Makino-A51

22

25

25

Horizontal

Haas EC400

20

20

20

Vertical

Haas VF6

64

32

30

Vertical

Haas VF7

84

32

30

Vertical

TM-1P

30

12

16

Vertical

Haas VF6
X-Axis: 64
Y-Axis: 32
Z-Axis: 30

Haas VF7
X-Axis: 84
Y-Axis: 32
Z-Axis: 30

TM-1P
X-Axis: 30
Y-Axis: 12
Z-Axis: 16

Horizontal

Makina-A51
X-Axis: 22
Y-Axis: 25
Z-Axis: 25

Haas EC400
X-Axis: 20
Y-Axis: 20
Z-Axis: 20
